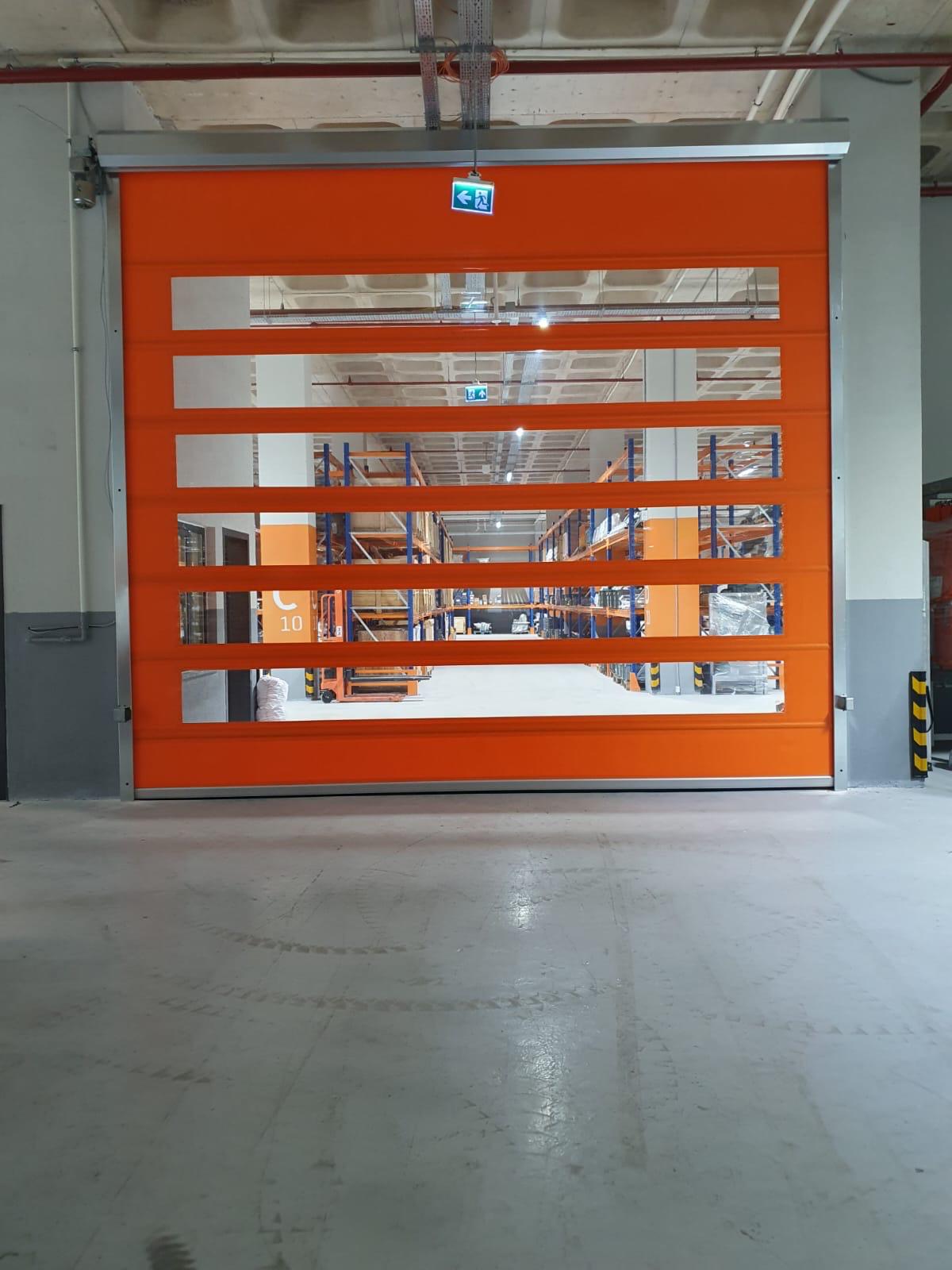

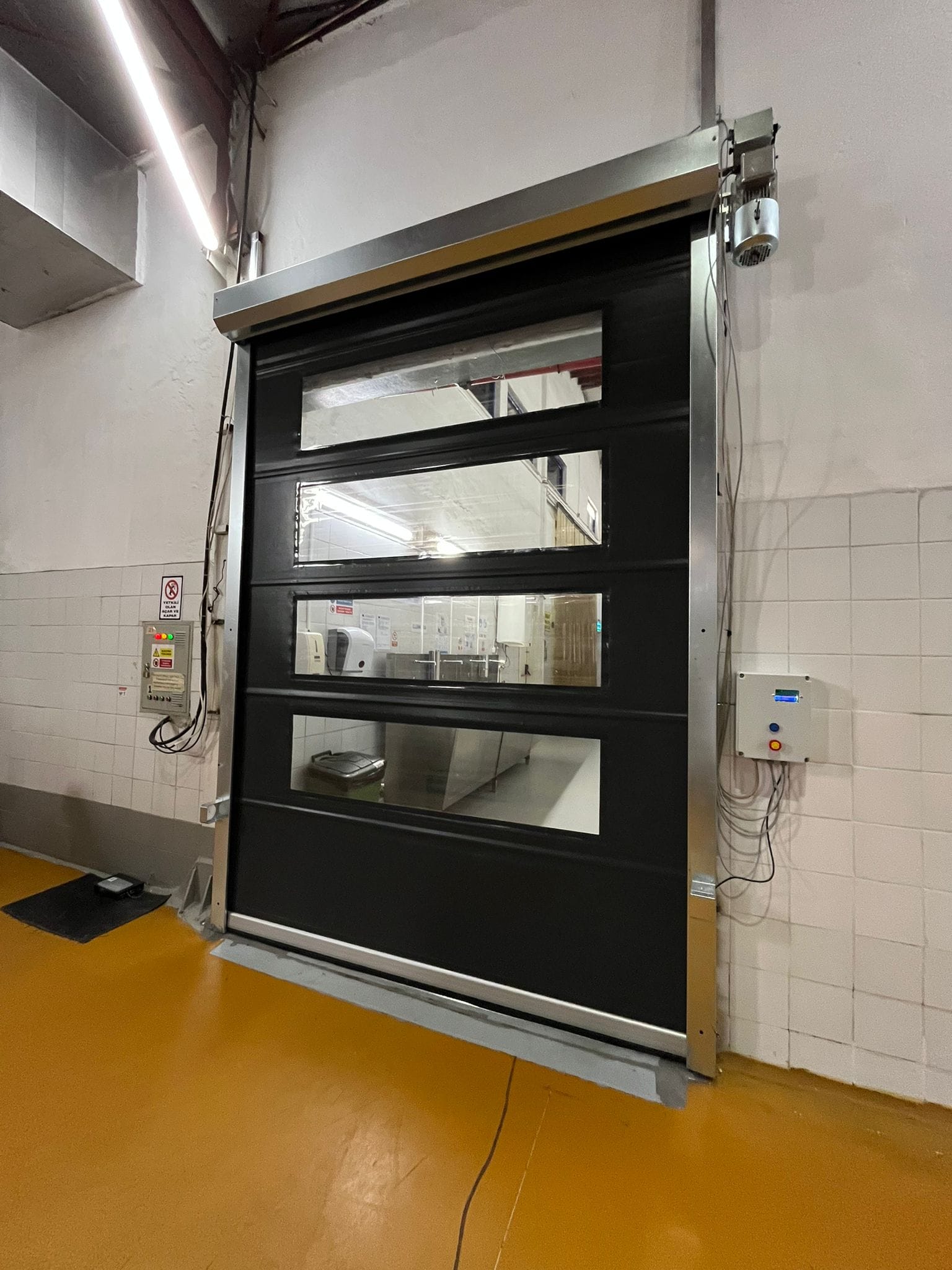

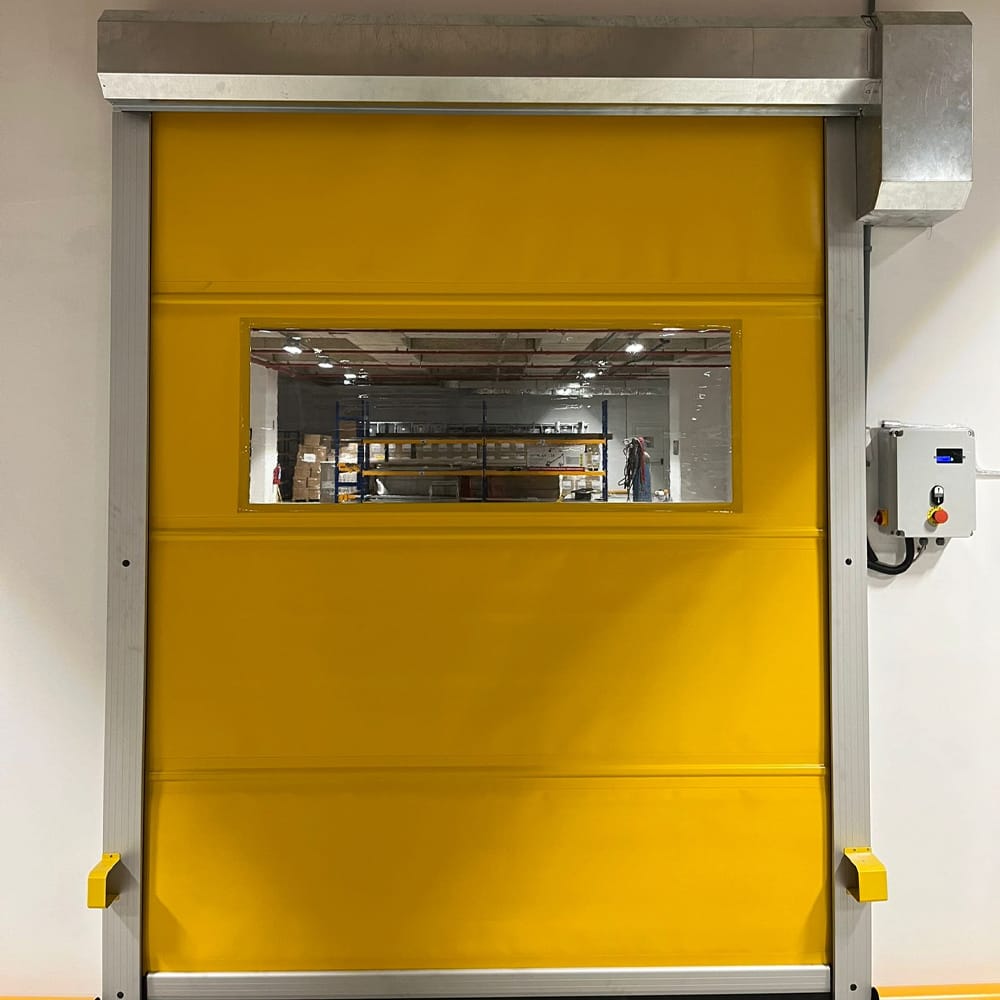

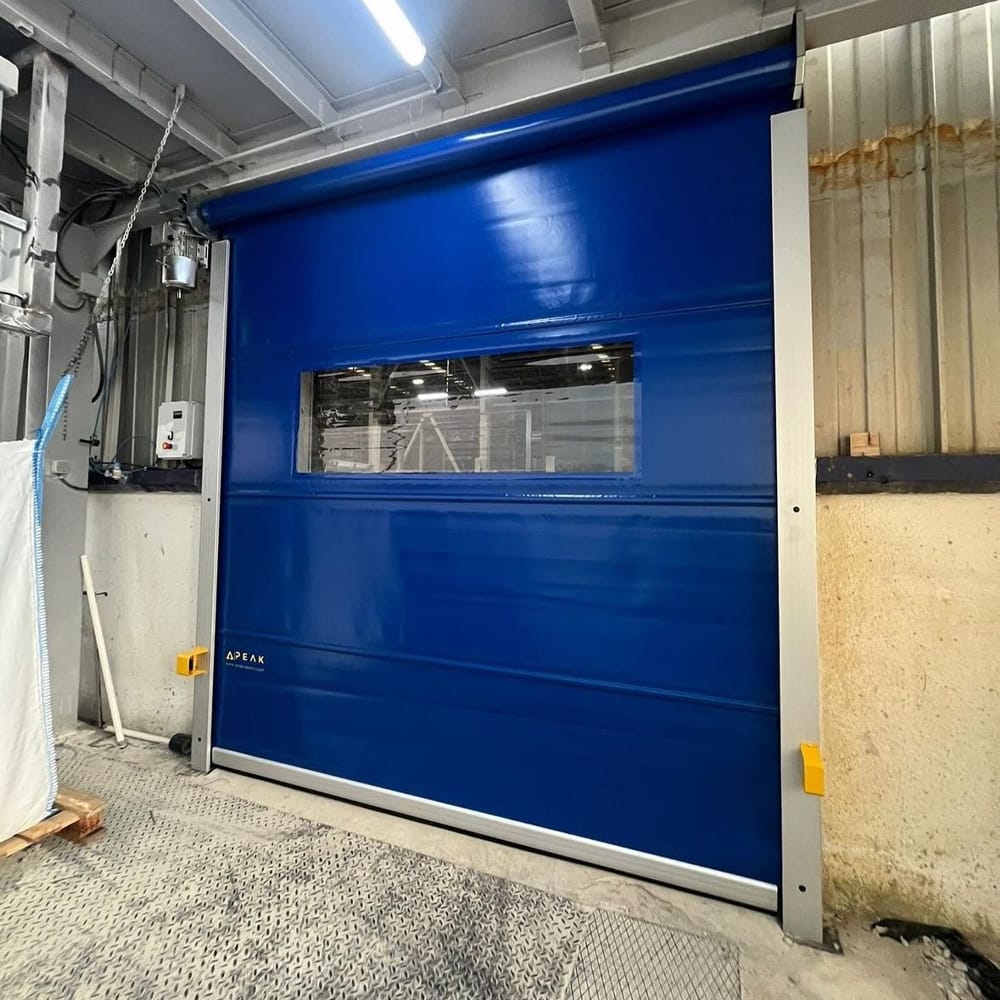

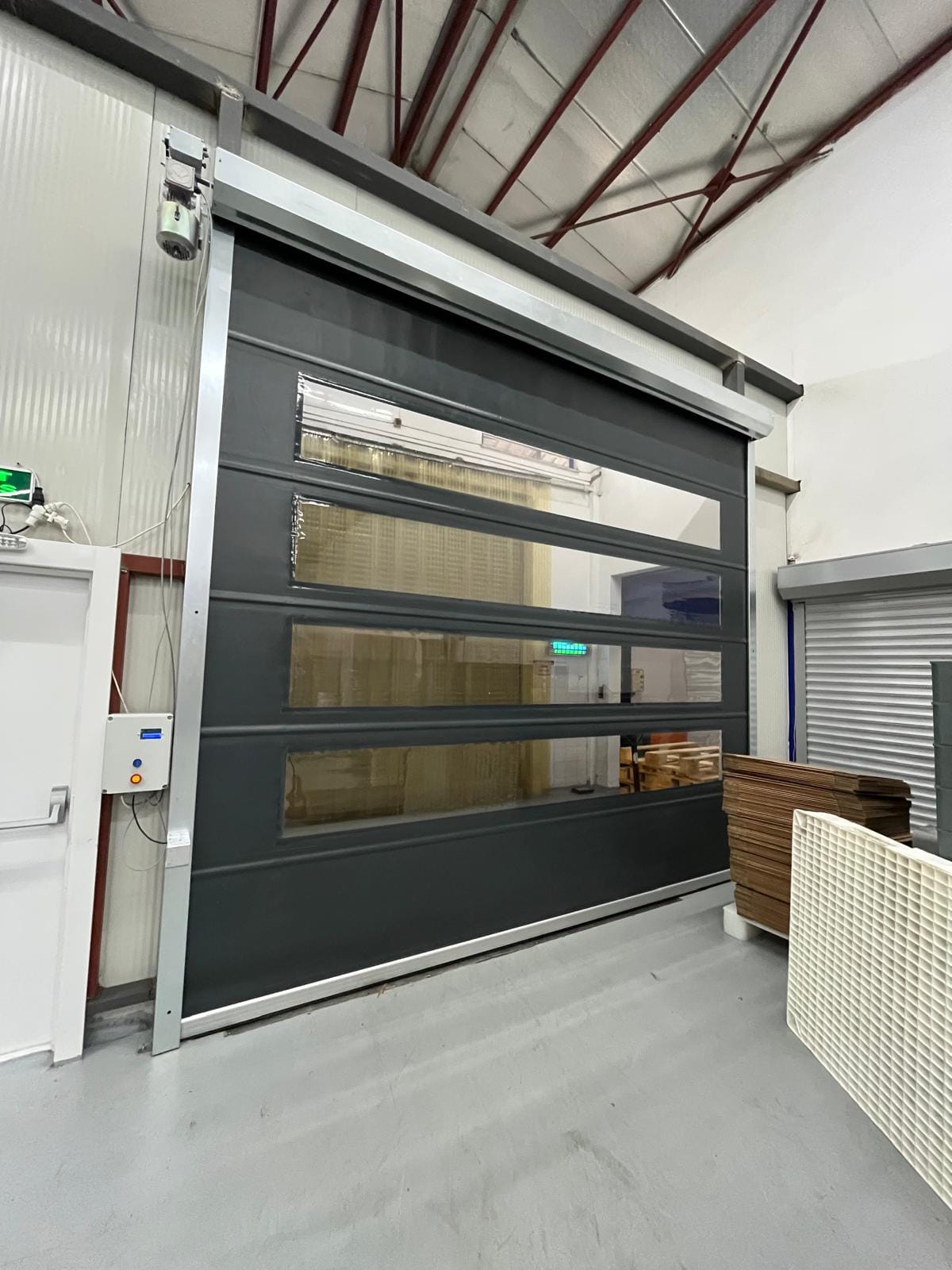

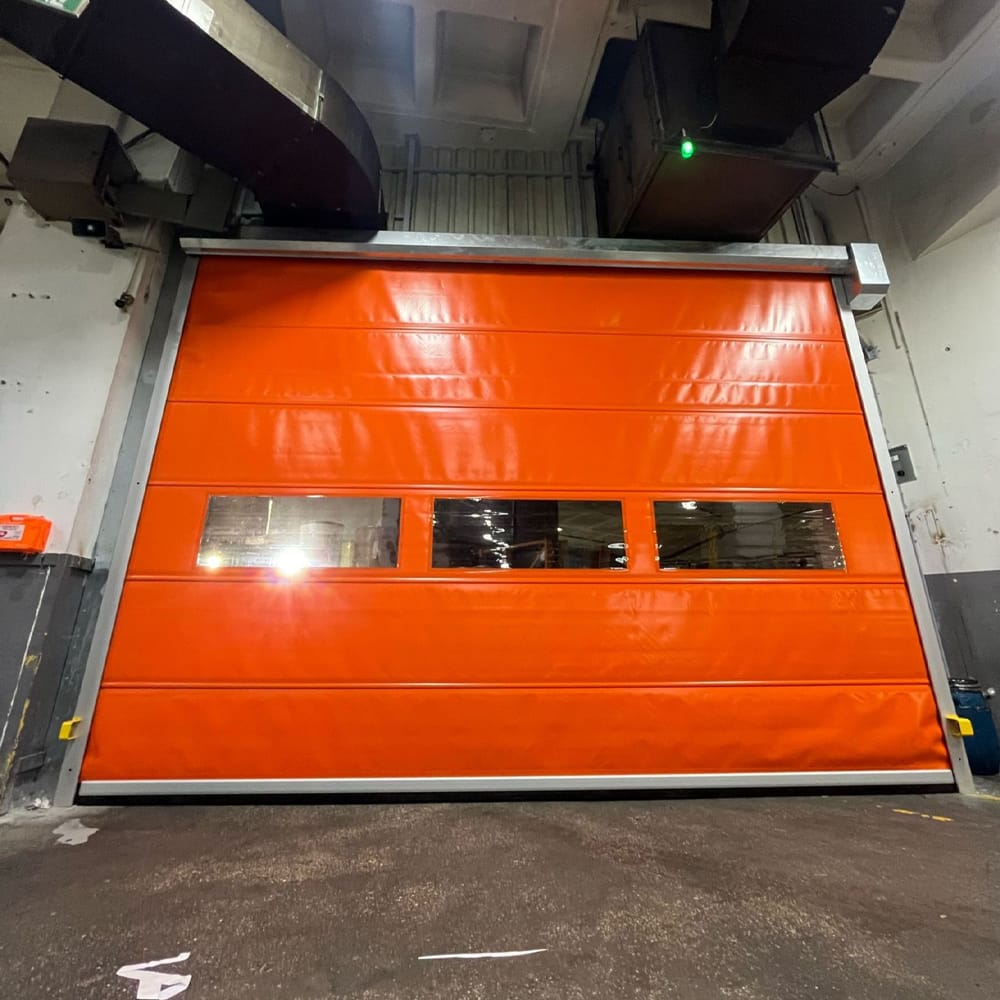

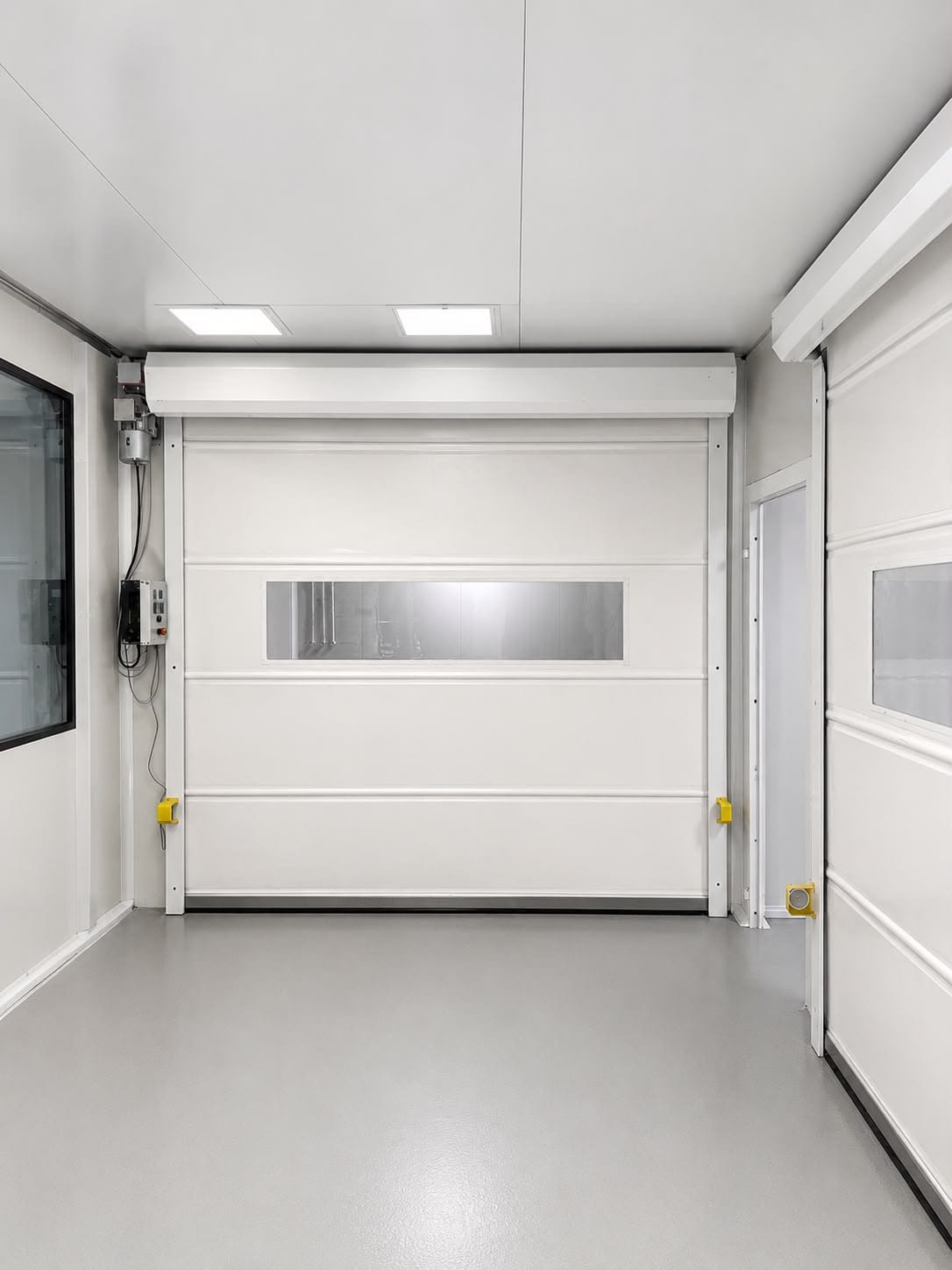

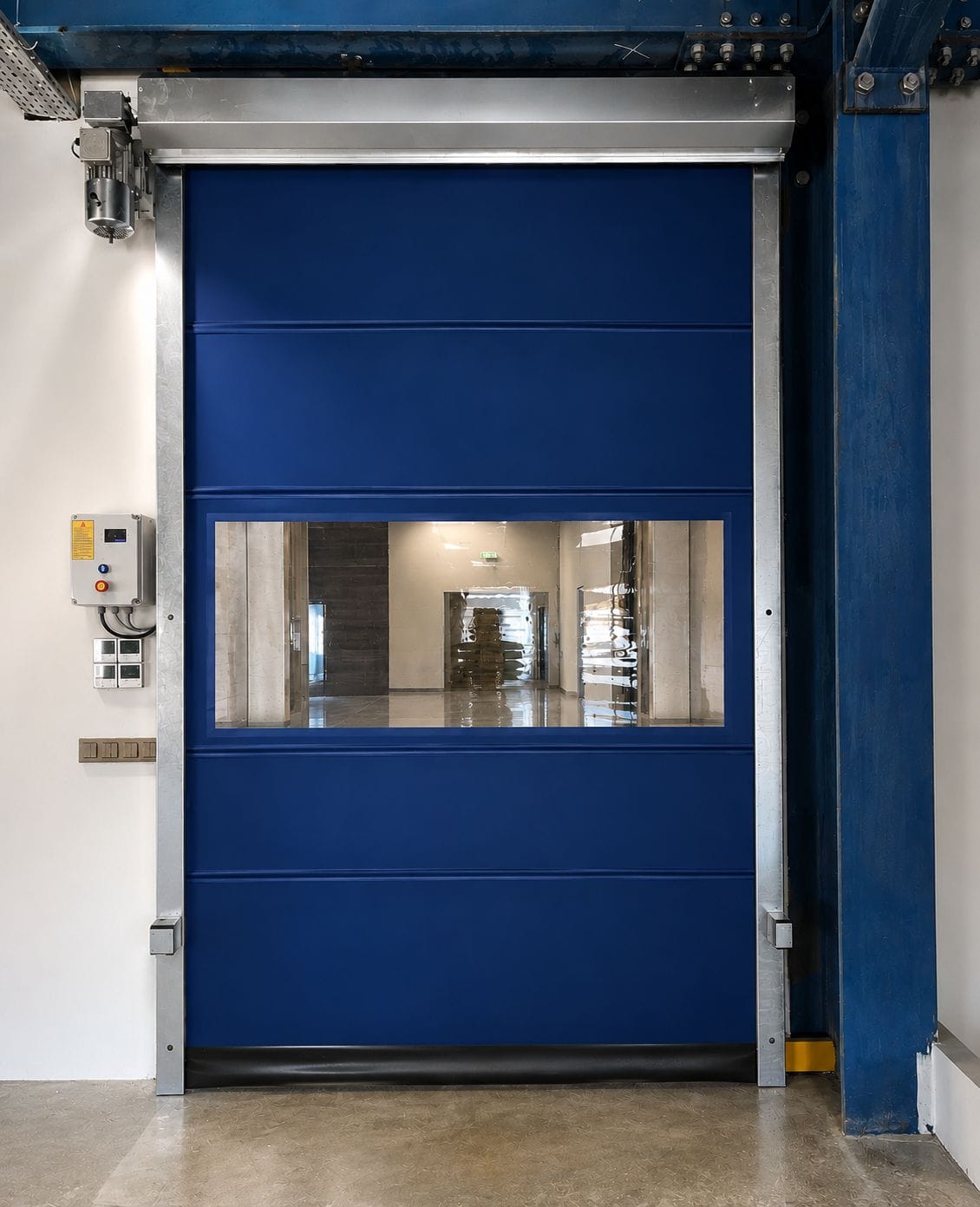

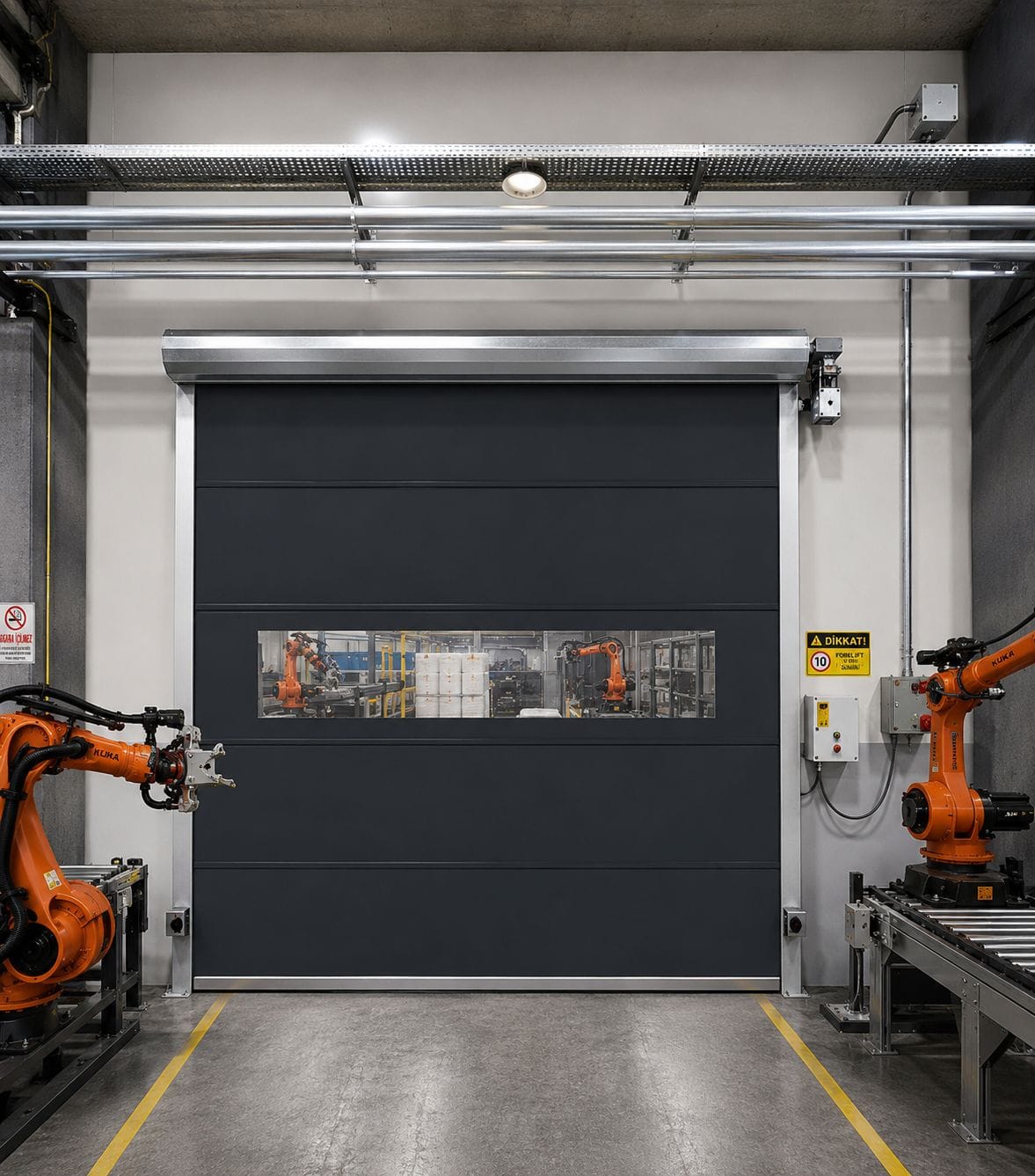

High-Speed PVC Roll-Up Door
A High-Speed PVC Roll-Up Door is an industrial door system designed for warehouses, logistics centers, food production facilities, pharmaceutical plants and manufacturing areas. The door opens and closes rapidly, helping businesses reduce energy loss, improve workflow and increase operational efficiency.
Its durable PVC curtain structure and reliable control system make it an ideal solution for areas with intensive forklift and personnel traffic. High-speed operation minimizes waiting times while maintaining a safe and controlled working environment.
Advantages of High-Speed PVC Roll-Up Doors
* Fast opening and closing operation
* Reduced heat and energy loss
* Improved hygiene standards
* Increased workplace safety
* Low maintenance requirements
* Long service life
* Suitable for intensive industrial use
High-Speed PVC Roll-Up Doors are commonly used in:
* Warehouses
* Logistics Centers
* Manufacturing Facilities
* Food Processing Plants
* Pharmaceutical Facilities
* Automotive Industry
* Cold Storage Areas
* Distribution Centers
High-Speed PVC Roll-Up Technical Features
* Durable PVC Curtain
* High-Speed Opening System
* Safety Photocells
* Emergency Opening Function
* Custom Dimensions Available
* Indoor and Outdoor Applications
* 220V and 380V Power Options
Interior Door Measurement
Width Max: 6000 mm
Height Max: 6000 mm
Speed
Standard Fixed Speed 0.70 m/s
With optional speed control addition;
Maximum opening speed 0.70 m – 1.2 m/s
Maximum closing speed 0.30 m – 1.2 m/s
Wind Resistance
40 km
*Wind resistance varies depending on the measurement.
tarpaulin
(Imported) 900 g/m²
Tarpaulin Thickness: 1 mm
Transparent Thickness: 2 mm
Emergency Opening
Manual control lever
Optional: Automatic door opening function via UPS uninterruptible power supply in case of power failure.
Metal Parts
Drum, Lower Bar, and Bolsters Galvanized,
All other parts are galvanized steel.
Automation
High-speed PVC motor – 0.55 kW – 0.75 kW
Switching components: Door control unit, Special Switch System, Safety Photoelectric Sensor
Options: Entry – Exit Metal Mass (RMM) Detector, Radar Sensor Count, Safety Photoelectric Sensor System (76-170cm), Remote Control System, Additional Safety Photoelectric Sensor, Lower Safety System, Warning Flasher• 0.55 kW – 0.75 kW high-efficiency fast PVC door motor
- Powerful torque structure optimized for industrial doors
- Quiet and stable operating performance
- Switching Materials / Control Equipment
- Door control unit (high-precision control card)
- Special Switch System
- Safety Photoelectric Sensor for operational and closing safety
Optional Accessories and Safety Systems
- Entry–Exit Metal Mass (RMM) Detector – Vehicle detection system
- Radar Sensor – Automatic opening during fast passage
- Safety Photoelectric Sensor System (76–170 cm) – Wide safety scanning range
- Remote Control System – User-friendly control
- Additional Safety Photoelectric Sensor – Extra safety line
- Bottom Safety System – Door bottom contact safety
- Warning Flasher – Visual warning system
Why Choose PEAK High Speed PVC Roll Up Doors?
* Direct Manufacturer
* Custom Dimensions
* CE Compatible Components
* Fast Production
* Worldwide Shipping
* Technical Support
* Spare Parts Availability
Features of High-Speed PVC Roll-Up Industrial Doors
- High-strength mechanism suitable for frequent opening and closing
- Frequency converter (inverter) control unit that provides smooth transitions during start-up and stop
- Manual opening system that activates during power outages
- Long-lasting, high-quality PVC fabric
- Strong and aesthetic appearance with seamless, single-piece aluminum side rails
- Strong bonding with high-frequency PVC welding technology
- Safe visibility with a transparent viewing window
- Versatile control options with radar, metal mass detector, remote control, corded switch, card or password access systems
- Automatic closing function
- Safety photocell integration for security
- Manual lever system suitable for manual use
Optional Features
- Interdoor Communication (Interlock System)
- Aesthetic and protective motor cover
- Aluminum or stainless steel reinforcement components suitable for high wind loads
